3-way Valve

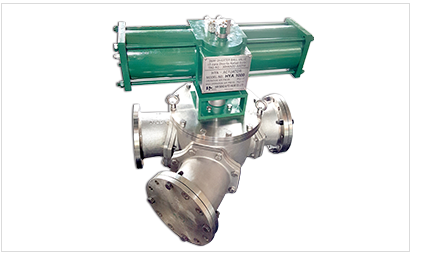

title_big.jpg3-WAY BALL VALVE (y-TYPE)

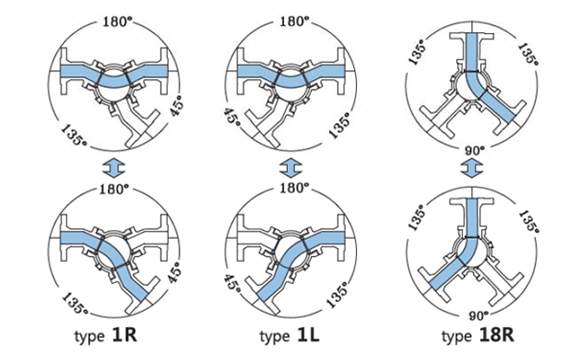

3-WAY BALL VALVE는 공압식, 전기식이 있으며 사용목적에 따라 내마모성, 내식성, 내열성에 맞추어 제작 가능합니다. 특징으로는, 노즐의 각도를 조절할 수 있습니다.































title_small.jpg제품구조 및 재질

NO PART NAME MATERIAL
1 BODY SCS13 etc.
2 CAP SCS13 etc.
3 BALL SCS13 etc.
4 BALL GUIDE DU BEARING
5 COVER SCS13 etc.
6 SEAT BRASS+RTFE
7 COUPLING S45C
8 BRACKET SS400
9 ACTUATOR SHAFT S45C
10 STEM O-RING NBR OR VITON
11 COVER O-RING NBR OR VITON
12 OIL SEAL NBR OR VITON

OPTION :

1. SOLENOID V/V

2. LIMIT SWITCH

3. PROXIMITY SENSOR

4. AIR UNIT

5. METAL SEAT



manufacturing range.png



- JIS 10K, ANSI 150LB, 300LB.

- CAST STAINLESS STEEL, ALUMINUM



title_small.jpg제품규격 및 적용

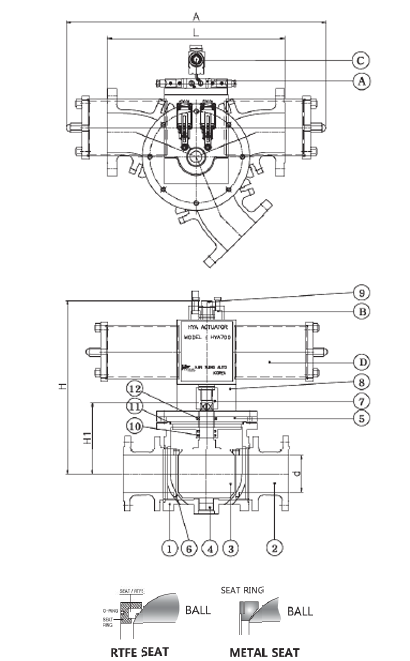

demensions.png  UNIT : mm
SIZE MODEL NAME d L H H1 A WEIGHT(KG)
40A 1.1/2" HYA-200 38 250 275 125 390 35
50A 2" HYA-300 51 280 350 145 420 42
65A 2.1/2" HYA-400 64 320 365 160 530 65
80A 3" HYA-500 76 360 440 180 655 90
100A 4" HYA-600 102 460 460 205 655 135
125A 5" HYA-700 127 500 560 250 830 175
150A 6" HYA-800 152 660 570 260 850 230
200A 8" HYA-900 203 800 640 320 1000 410
250A 10" HYA-1000 254 940 680 395 1000 540
300A 12" HYA-1100 305 1100 970 425 1600 660
350A 14" HYA-1200 355 1500 1050 500 1600 1280














Barley Nylon Chip
Beading Material Polyester Chip
Carbon Polyethylene Powder
Cement Polypropylene Powder
Coal Dust Polyvinyl Chloride Powder
Cream Powder Soda Ash
Feed Sugar




































SOLENOID VALVE
LIMIT SEITCH, PROXIMITY SENSOR
AIR UNIT (FILTER & REGULATOR)
























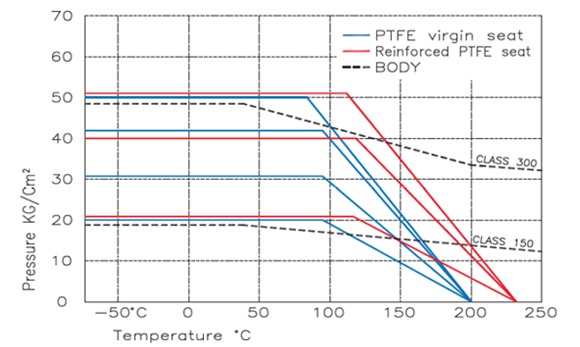

CLASS BODY(HYDRO) SEAT(AIR)
JIS10K 2.94 Mpa 0.59 Mpa
ANSI150 437 PSI 80 PSI

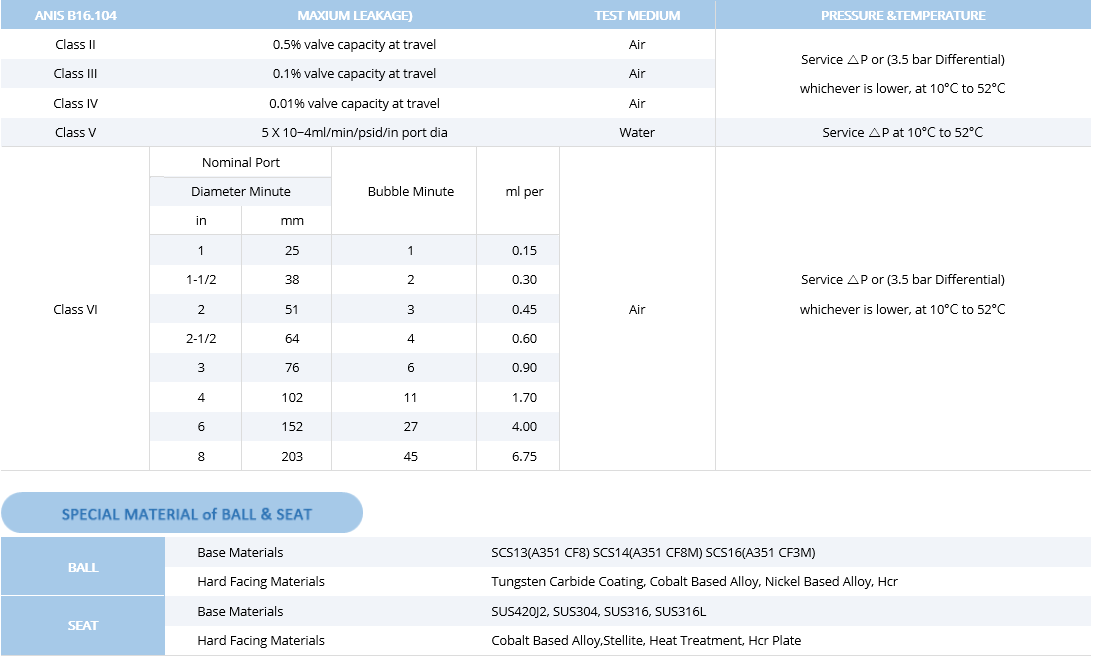

title_small.jpgALLOWABLE SEAT LEAKAGE : ANSI B16.104
