Butterfly Valve

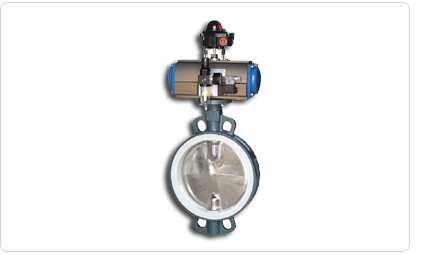

title_big.jpgPNEUMATIC BUTTERFLY VALVE / H-SERIES


PNEUMATIC BUTTERFLY VALVE는 공압식, 전기식이 있으며 내마모성, 내식성, 내열성 등 용도에 맞게 제작합니다.

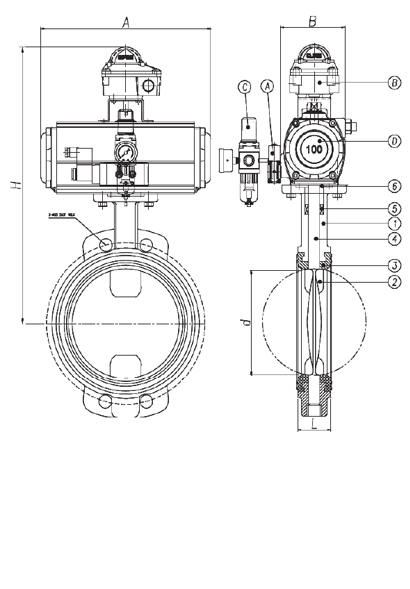

title_small.jpg제품구조 및 재질

NO PART NAME MATERIAL
1 BODY GC250 etc.
2 DISC SCS13 etc.
3 SEAT EPDM-BLACK & WHITE
4 STEM SUS304 etc.
5 PACKING EPDM etc.
6 PACKING GLAND ACETAL etc.
7 LOW STEM SUS304 etc.
8 PLUG SS400
A SOLENOID VALVE OPTION
B LIMIT SWITCH OPTION
C AIR UNIT OPTION
D ACTUATOR ALUMINUM

OPTION :

1. SOLENOID V/V

2. LIMIT SWITCH

3. PROXIMITY SENSOR

4. AIR UNIT



manufacturing range.png



- JIS 10K, 16K, 20K, ANSI 150LB, 300LB.

- CAST IRON, DUCTILE IRON

- CAST STAINLESS STEEL, ALDC

title_small.jpg제품규격



demensions.png  UNIT : mm
SIZE MODEL NAME d L H A B WEIGHT(KG)
40A 1.1/2" HBT-50-40 40 40 350 260 83 6
50A 2" HBT-50-50 52 43 360 260 83 6
65A 2.1/2" HBT-50-65 64 46 365 260 83 8
80A 3" HBT-65-80 76 46 400 302 99 9
100A 4" HBT-65-100 101 52 420 302 99 11
125A 5" HBT-80-125 126 56 460 386 141 17
150A 6" HBT-80-150 149 56 480 386 141 18
200A 8" HBT-100-200 196 60 540 422 152 30
250A 10" HBT-100-250 244 68 570 422 152 47
300A 12" HBT-125-300 294 78 650 530 195 61
350A 14" HBT-140-350 333 78 680 550 205 90
400A 16" HBT-160-400 384 102 760 675 238 130

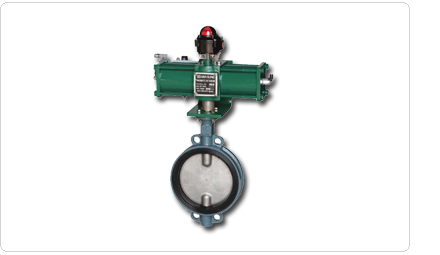

title_big.jpgPNEUMATIC BUTTERFLY VALVE / HD-SERIES


PNEUMATIC BUTTERFLY VALVE는 공압식, 전기식이 있으며 내마모성, 내식성, 내열성 등 용도에 맞게 제작합니다.

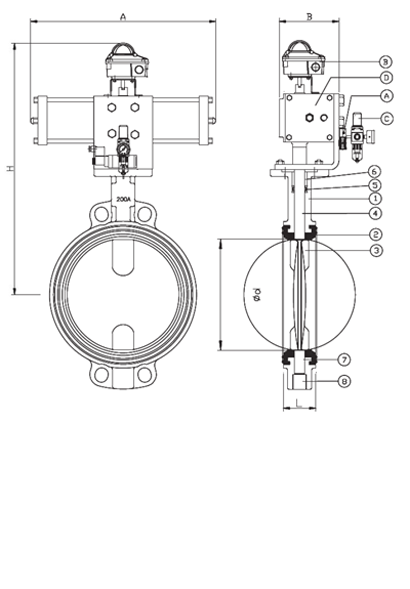

title_small.jpg제품구조 및 재질

NO PART NAME MATERIAL
1 BODY GC250 etc.
2 DISC SCS13 etc.
3 SEAT EPDM-BLACK & WHITE
4 STEM SUS304 etc.
5 PACKING EPDM etc.
6 PACKING GLAND ACETAL etc.
A SOLENOID VALVE OPTION
B LIMIT SWITCH OPTION
C AIR UNIT OPTION
D ACTUATOR ALUMINUM

OPTION :

1. SOLENOID V/V

2. LIMIT SWITCH

3. PROXIMITY SENSOR

4. AIR UNIT

5. SPRING RETURN ACTUATOR



manufacturing range.png



- JIS 10K, 16K, 20K, ANSI 150LB, 300LB.

- CAST IRON, DUCTILE IRON

- CAST STAINLESS STEEL, ALDC

title_small.jpg제품사양



demensions.png  UNIT : mm
SIZE MODEL NAME d L H A B WEIGHT(KG)
40A 1.1/2" HDBT-50-40 40 40 325 162 75 5
50A 2" HDBT-50-50 52 43 335 162 75 5
65A 2.1/2" HDBT-50-65 64 46 340 162 75 6
80A 3" HDBT-65-80 76 46 370 202 89 7.5
100A 4" HDBT-65-100 101 52 390 202 89 8
125A 5" HDBT-80-125 126 56 430 262 101 11
150A 6" HDBT-80-150 149 56 440 262 101 13
200A 8" HDBT-100-200 196 60 500 311 129 21
250A 10" HDBT-100-250 244 68 535 311 129 28
300A 12" HDBT-125-300 294 78 600 390 151 43
350A 14" HDBT-140-350 333 78 650 431 164 75
400A 16" HDBT-160-400 384 102 710 506 188 108
